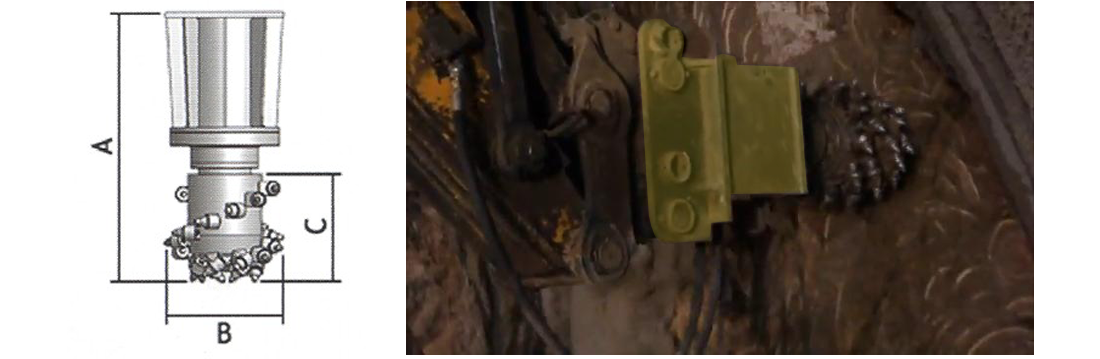

| Model | Suitable Excavator(ton) | Max. RPM | Max. Power(kw) | Max. Operating pressure(Bar) | Height A(mm) | Width B(mm) | Wheel Diameter C(mm) |
|---|---|---|---|---|---|---|---|
| KCC 30 | 4-7 | 160 | 23 | 350 | 800 | 350 | 300 |
| KCC 60 | 8-16 | 220 | 45 | 350 | 1100 | 450 | 360 |
| KCC 80 | 17-24 | 170 | 75 | 450 | 1900 | 600 | 500 |
| KCC 100 | 24-36 | 155 | 80 | 450 | 1900 | 600 | 500 |
* Above specifications are subject to change without prior notice.
