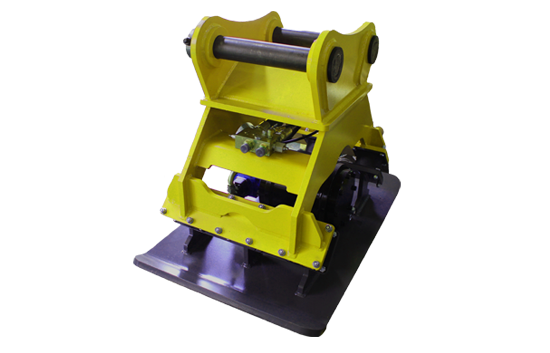

K&L Compactor has been designed for various compaction job sites, guaranteeing fast and easy installation.
| Adapter Type (without mounting cap/Adapter) | Adapter Type (with mounting cap/Adapter |
|---|---|
 |
 |
| item / Model | KLC30N | KLC30 | KLC40 | KLC60 | KLC80 | KLC100 | |
|---|---|---|---|---|---|---|---|
| Impulse force (ton/lb) |
4 8,820 |
4 8,820 |
6 13,230 |
7.5 16,538 |
15 33,075 |
15 33,075 |
|
| Max. cycles per min. (rpm) |
1800 | 1800 | 1800 | 1800 | 2000 | 2000 | |
| Oil flow required (lpm/gpm) |
45~65 11.9~17.2 |
45~65 11.9~17.2 |
50~70 13.2~18.5 |
80~110 21.1~29 |
120~170 31.6~44.8 |
150~200 39.6~52.8 |
|
| Operating Oil Pressure (bar/psi) |
100~170 1423~2419 |
100~170 1423~2419 |
120~180 1708~2561 |
150~210 2134~2988 |
170~220 2419~3130 |
170~220 2419~3130 |
|
| Weight (kg/lb) | 284 628 |
350 734 |
543 1200 |
644 1423 |
1060 2343 |
1150 2542 |
|

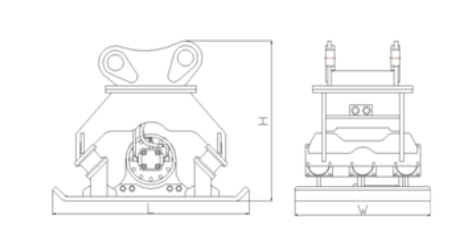

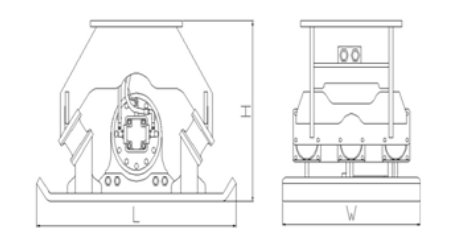

| Base Plate (L*W mm/in.) |
900x320 | 900x550 | 950x550 | 1160x700 | 1350x900 | 1350x900 | |
| 35.40.x12.60 | 35.40x21.65 | 37.4x21.65 | 45.67x27.56 | 53.15x35.40 | 53.15x35.40 | ||
| Height (mm/in.) | Adapter Type |
556 | 540 | 644 | 676 | 730 | 730 |
| 21.89 | 21.26 | 25.35 | 26.61 | 28.74 | 28.74 | ||
| Direct Type |
746 | 751 | 863 | 922 | 1043 | 1092 | |
| 29.37 | 29.57 | 33.98 | 36.30 | 41.06 | 42.99 | ||
| Suitable carrier (ton/lb) |
4~5 | 4~5 | 6~10 | 13~16 | 18~25 | 28~36 | |
| 8820~11,025 | 8820~11,025 | 13230~22050 | 28,665~35,280 | 39,690~55,125 | 61,740~79,380 | ||
