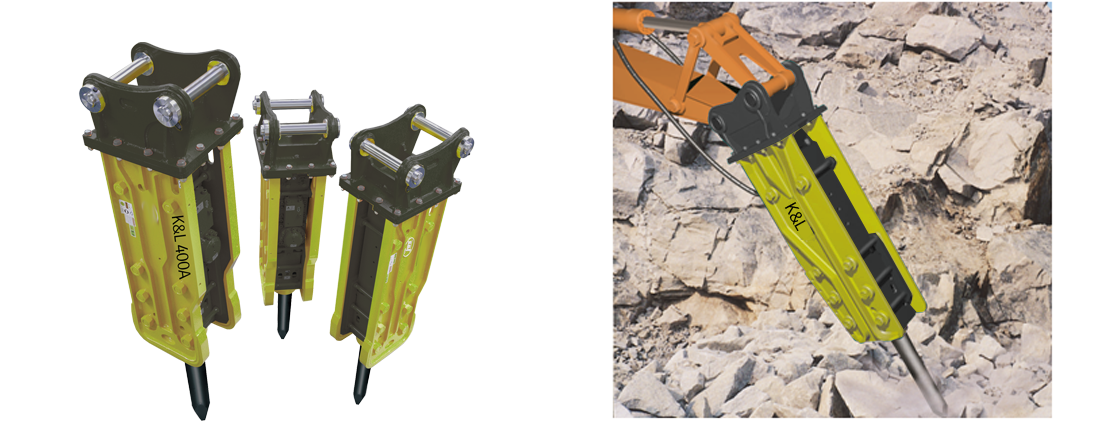

| SECTION MODEL | K&L150A | K&L220A | K&L300A | K&L400A | |||
|---|---|---|---|---|---|---|---|
|
Operating Weight |
Top(Split) type |
kg | 1,110 | 1,680 | 2,080 | 2,790 | |
| lb | 2,442 | 3,394 | 4,576 | 6,138 | |||
|
Overall Height |
Split Type |
with |
mm | 2,035 | 2,390 | 2,620 | 2,950 |
|
|
tool |
inch | 80.12 | 94.0 | 103.15 | 116.14 | |
|
Operating Oil Pressure |
bar | 150 - 180 | 160 - 180 | 160 - 180 | 160-180 | ||
| psi |
2,130 |
2,270 |
2,270 |
2,270 |
|||
| -2,560 | -2,560 | -2,560 | -2,560 | ||||
|
Required Oil Flow |
lpm | 90-120 | 130-150 | 150-190 | 190-250 | ||
| gpm | 24-32 | 34-40 | 40-50 | 50-66 | |||
|
Impact Rate |
bpm | 400-900 | 400-800 | 350-700 | 300-600 | ||
|
Tool Diameter |
mm | Ø 120 | Ø 135 | Ø 150 | Ø 160 | ||
| inch | Ø 4.72 | Ø 5.31 | Ø 5.90 | Ø 6.29 | |||
|
Hose Diameter |
mm | 25 | 25 | 25 | 32 | ||
| inch | 1 | 1 | 1 | 1¼ | |||
|
Suitable Excavator |
ton | 13.0-18.0 | 18.0-26.0 | 26.0-35.0 | 30.0-40.0 | ||
| lb |
28,665 |
39,690 |
57,330 |
66,138 |
|||
| -39,690 | -57,330 | -77,000 | -88,000 | ||||
|
* Above specifications are subject to change without prior notice. |
|||||||
