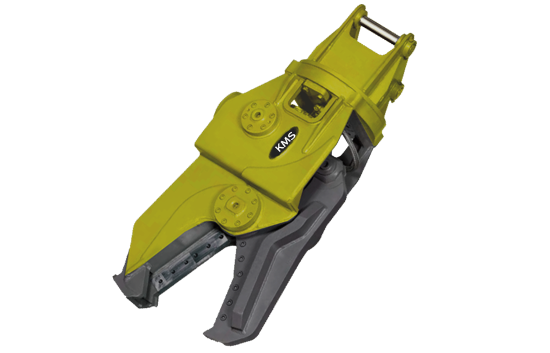

K&L MINI SHEAR
K&L Mini Shear is
- Light weight design for stability of operating machine
- Trunnion mounting cylinder for compact design
- High strength and wear resistance materials for reliability
- Full line-up for mini excavators
| Item |
Unit |
KMS020R |
KMS030R |
KMS050R |
KMS050H |
| Weight |
kg |
190 |
260 |
430 |
500 |

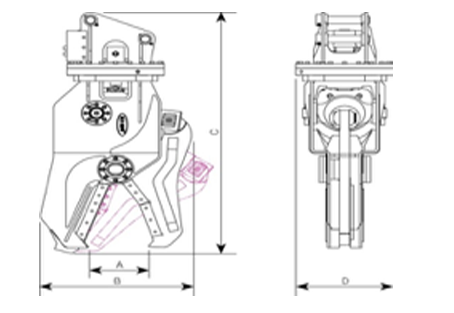

| Jaw Opening A |
mm |
200 |
230 |
290 |
290 |
| Total Width B |
mm |
478 |
563 |
720 |
720 |
| Total Length C |
mm |
1,085 |
1,200 |
1,410 |
1,456 |
| Total Height D |
mm |
290 |
350 |
400 |
465 |
| Pressure (cylinder) |
bar |
210 |
210 |
210 |
210 |
| Oil Flow (cylinder) |
lpm |
20-45 |
30-75 |
40-80 |
40-80 |
| Pressure (rotation) |
bar |
- |
- |
- |
120 |
| Oil Flow (rotation) |
lpm |
- |
- |
- |
20~50 |
| Force at Throat |
ton |
65 |
111 |
152 |
152 |
| Force at Mid |
ton |
34 |
47 |
60 |
60 |
| Force at Front |
ton |
22 |
26 |
33 |
33 |
| Jaw Material |
|
Hardox 500 |
| Rotating |
- |
360° Free Rotating |
Hyd. Rotating |
| Excavator |
ton |
1.5~3.0 |
2.5~5.0 |
4.5~8.0 |
4.5~8.0 |
