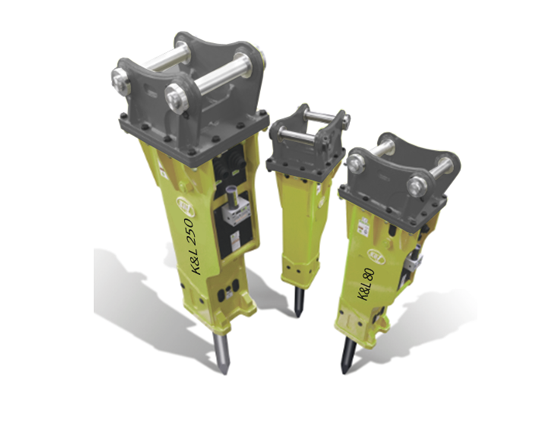

High quality K&L Breaker for road construction, quarry, civil works site.
Improved durability under the strict quality control
| SECTION MODEL | K&L10 | K&L20 | K&L30 | K&L40 | K&L60 | K&L80 | K&L130 | K&L180 | K&L250 | K&L350 | K&L500 | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Operating Weight |
Box Type (silenced) with mounting cap |
kg | 90 | 105 | 180 | 300 | 350 | 580 | 860 | 1,200 | 1,860 | 2,350 | 3,990 | |
| lb | 198 | 231 | 396 | 660 | 772 | 1,276 | 1,892 | 2,640 | 4,092 | 5,170 | 8,796 | |||
| Overall Height |
Box Type | with | mm | 973 | 1046 | 1180 | 1,362 | 1,451 | 1,760 | 1,985 | 2,230 | 2,452 | 2,728 | 3,709 |
| tool | inch | 38.31 | 41.18 | 46.46 | 53.62 | 57.1 | 69.29 | 78.15 | 87.8 | 96.5 | 107.4 | 146.0 | ||
| Operating Oil Pressure | bar | 75 - 95 | 80 - 100 | 90 - 120 | 90 - 130 | 120 - 150 | 130 - 150 | 150 - 170 | 150 - 170 | 160 - 180 | 160 - 180 | 160-180 | ||
| psi | 1,138 | 1,138 | 1,280 | 1,280 | 1,707 | 1,850 | 2,130 | 2,130 | 2,270 | 2,270 | 2,270 | |||
| -1,564 | -1,564 | -1,706 | -1,850 | -2,134 | -2,130 | -2,420 | -2,420 | -2,560 | -2,560 | -2,560 | ||||
| Required Oil Flow | lpm | 15-25 | 20-30 | 20-50 | 30-50 | 45-90 | 45-90 | 80-110 | 90-120 | 120-150 | 170-250 | 210-290 | ||
| gpm | 4-7 | 5-8 | 5-13 | 8-13 | 13-24 | 12-24 | 20-30 | 24-32 | 32-40 | 45-66 | 56-77 | |||
| Impact Rate | bpm | 800-1200 | 600-1000 | 550-950 | 450-900 | 400-800 | 400-750 | 400-700 | 350-650 | 350-600 | 300-550 | 200-350 | ||
| Tool Diameter | mm | Ø 40 | Ø 45 | Ø 53 | Ø 68 | Ø 75 | Ø 85 | Ø 100 | Ø 125 | Ø 140 | Ø 155 | Ø 175 | ||
| inch | Ø 1.57 | Ø 1.77 | Ø 2.08 | Ø 2.67 | Ø 2.95 | Ø 3.34 | Ø 3.93 | Ø 4.92 | Ø 5.51 | Ø 6.10 | Ø 6.89 | |||
| Hose Diameter | mm | 13 | 13 | 13 | 13 | 13 | 19 | 19 | 19 | 25 | 32 | 32 | ||
| inch | ½ | ½ | ½ | ½ | ½ | ¾ | ¾ | ¾ | 1 | 1¼ | 1¼ | |||
| Suitable Excavator | ton | 0.8-2.0 | 1.2-2.5 | 1.0-3.5 | 4.0-7.0 | 6.0-9.0 | 7.0-13.0 | 9.0-16.0 | 15-18 | 18.0-26.0 | 26.0-35.0 | 35.0-50.0 | ||
| lb | 1,764 | 2,646 | 2,205 | 8,820 | 13,230 | 15,435 | 19,845 | 33,070 | 39,690 | 57,330 | 77,000 | |||
| -4,410 | -5512 | -7,718 | -15,435 | -19,845 | -28,660 | -35,270 | -39,680 | -57,330 | -77,000 | -110,100 | ||||
