| Setion | Description |
|---|---|

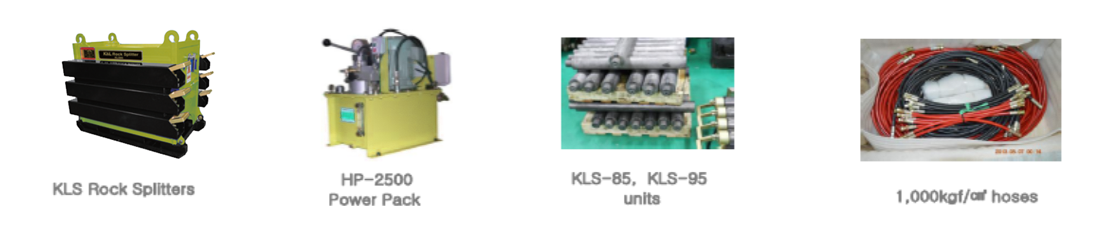

| KLS Rock Splitters | Complete Set |
| HP-2500 Power Pack | 3 HP 2.2kw 3 phase, 380V, 50Hz . |
| Operation Oil | ISO VG #32 ( Oil No. 32) |
| Oil Tank Capacity | 35L |
| Operating Oil Pressure of Hyd. Pump | 1,100Kgf/㎠ |
| Piston Diameter, units/6EA | KLS85 - Ø85mm / KLS95 -Ø95mm |
| (Drill Bit Ømm) | HRD-85 /(Ø95mm) / HRD-95 /(Ø105mm) |
| Working Radius - hoses | Standard 11.5m, (3.5m/8EA, 0.5m/7EA,) |
| Dimension | Packing Dimension : L x W x H (1,200mm x 900mm x 1100mm), |
| Gross Weight | Packing Weight : HRD-85 / 6EA / 670 kg , HRD-95 / 6EA / 700 Kg |
| Items | Unit | Manually operated | |
|---|---|---|---|
| Model | KLS-85 | KLS-95 | |
| Outer Diameter | mm | Ø85 | Ø95 |
| Length | mm | 932 | 885 |
| Weight | kg | 34 | 39 |
| Stroke of Piston | mm | 23 | 25 |
| Number of Pistons | PC (EA) | 11 | 9 |
| Splitting Force of a Piston | 1,100k | 23.5ton | 28.5ton |
| Splitting Force of a Cylinder | 1,100K | 259ton | 256.5ton |
| Splitting Force of a set of 4 Cylindere | 1,100K | 1,036ton | 1,026ton |
| Splitting Force of A set of 6 Cylinders | 1,100K | 1,554ton | 1,539ton |
| Cycle time of a set of 6Cylinders | Minutes | 1~2 | 1~2 |
| Suitable drill bit (mm) | Diameter kint | Ø95 R.Drill | Ø105 R. Drill |
| Model | KLCH-85 | KLCH-95 |
|---|---|---|
| Diameter (mm) | 85 | 95 |
| Length (mm) | 850 | 950 |
| Weight (kgs) | 32 | 33 |
| No. of Piston | 11 | 6 |
| Stroke (mm) | 23 | 25 |
| Model | KLCE-150 | KLCE-200 |
|---|---|---|
| Diameter (mm) | 150 | 200 |
| Length (mm) | 1,240 | 1,270 |
| Weight (kgs) | 132 | 245 |
| No. of Piston | 8 | 6 |
| Stroke (mm) | 40 | 45 |
