| Item | Unit | KMC010R | KMC020R | KMC030R | KMC050R | KMC050H |
|---|---|---|---|---|---|---|
| Weight | kg | 105 | 180 | 330 | 420 | 490 |

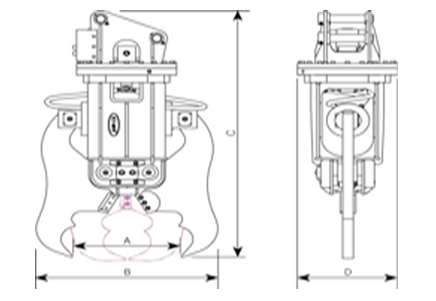

| Jaw Opening A | mm | 280 | 360 | 430 | 520 | 520 |
| Total Width B | mm | 568 | 688 | 767 | 844 | 844 |
| Total Length C | mm | 900 | 1,110 | 1,328 | 1,405 | 1,460 |
| Total Height D | mm | 260 | 290 | 350 | 400 | 465 |
| Pressure (cylinder) | bar | 210 | 210 | 210 | 210 | 210 |
| Oil Flow (cylinder) | lpm | 15~35 | 20~45 | 30~75 | 40~80 | 40~80 |
| Pressure (rotation) | bar | - | - | - | - | 120 |
| Oil Flow (rotation) | lpm | - | - | - | - | 20~50 |
| Force at Throat | ton | 58 | 62 | 84 | 99 | 99 |
| Force at Mid | ton | 30 | 32 | 39 | 48 | 48 |
| Force at Front | ton | 20 | 22 | 28 | 32 | 32 |
| Jaw Material | Hardox 500 | |||||
| Rotating | - | 360° Free Rotating | Hyd. Rotating | |||
| Excavator | ton | 0.7~2.0 | 1.5~3.0 | 2.5~5.0 | 4.5~8.0 | 4.5~8.0 |
